ORG Automatic UF
Fully automatic PLC-controlled ultrafiltration plant on SS304 skid for Nagpur industries, with 11-mode automatic backwash cycle. Genuine ORG dealer.
Description
| Control | Fully automatic, PLC-operated |
| Valves | 7x motorised ceramic ball valves, 24V DC |
| Pumps | Separate pumps for backwash and service |
| Pre-Filtration | In-built MCF filters |
| Skid | SS 304 |
| Operating Modes | 11 fully automatic time-based modes (filtration up/down, backwash up/down, flushing up/down, CEB-1, CEB-2, soaking) |
Price: On Request — contact Nandan Sales for the current price and a free site consultation.

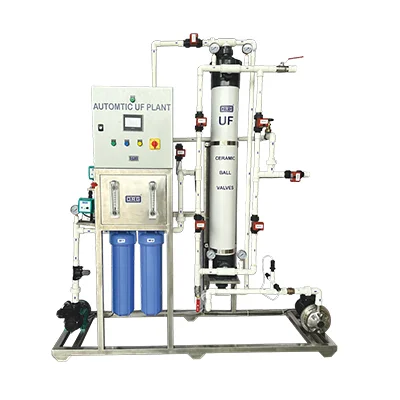

The ORG Automatic UF (Ultrafiltration) system is a fully PLC-operated plant built for Nagpur industries and institutions needing consistent, maintenance-free filtration. It uses 7 motorised ceramic ball valves on 24V DC power, separate pumps for backwash and service duty, and in-built MCF filters for pre-filtration — all mounted on a corrosion-resistant SS304 skid. The system cycles through 11 fully automatic operating modes, including filtration, backwash, flushing and chemically enhanced backwash (CEB) stages in both directions, keeping the membrane performing consistently without manual intervention.
Nandan Sales supplies, installs and services the ORG Automatic UF system across Nagpur, with genuine parts and dedicated commercial after-sales support.
